中华介入放射学电子杂志 ›› 2026, Vol. 14 ›› Issue (03) : 307 -310. doi: 10.3877/cma.j.issn.2095-5782.2026.03.012

技术与方法

经股静脉取出下腔静脉滤器回收钩开口方向对回收抓捕次数影响的临床分析
梁君1,(), 袁仪浪1, 孙凤艳1, 王赛赛1, 王卫东2
  1. 1 214177 江苏无锡,无锡市惠山区中医医院肿瘤科
    2 214023 江苏无锡,无锡市人民医院介入科
  • 收稿日期:2025-12-10 出版日期:2026-08-25
  • 通信作者: 梁君

Clinical Analysis of the Impact of Filter Retrieval Hook Opening Direction on Retrieval Attempts via Femoral Vein Access for Inferior Vena Cava Filters

Jun Liang1,(), Yilang Yuan1, Fengyan Sun1, Saisai Wang1, Weidong Wang2

  1. 1 Department of Oncology, Wuxi Huishan District Hospital of Traditional Chinese Medicine, Wuxi 214177, China
    2 Department of Interventional Radiology, Wuxi People's Hospital, Wuxi 214023, China
  • Received:2025-12-10 Published:2026-08-25
  • Corresponding author: Jun Liang
引用本文:

梁君, 袁仪浪, 孙凤艳, 王赛赛, 王卫东. 经股静脉取出下腔静脉滤器回收钩开口方向对回收抓捕次数影响的临床分析[J/OL]. 中华介入放射学电子杂志, 2026, 14(03): 307-310.

Jun Liang, Yilang Yuan, Fengyan Sun, Saisai Wang, Weidong Wang. Clinical Analysis of the Impact of Filter Retrieval Hook Opening Direction on Retrieval Attempts via Femoral Vein Access for Inferior Vena Cava Filters[J/OL]. Chinese Journal of Interventional Radiology(Electronic Edition), 2026, 14(03): 307-310.

目的

探讨经股静脉置入下腔静脉滤器回收钩方向与取出时股静脉入路选择对抓捕次数的影响。

方法

纳入2023年7月至2025年3月无锡市惠山区中医医院患下肢深静脉血栓伴或不伴有肺动脉栓塞的患者26例,经股静脉途经下腔静脉滤器置入,抗凝取栓后取出下腔静脉滤器。其中经回收钩开口方向对侧股静脉入路回收滤器9例,同侧入路17例。取出滤器后,口服抗凝治疗6个月并定期复查。

结果

26例患者均成功取出滤器。经回收钩开口方向对侧股静脉入路回收滤器9例,抓捕7~12次,同侧入路17例,抓捕1~4次,差异有统计学意义(P<0.001)。

结论

经股静脉入路置入滤器回收时选择开口方向同侧股静脉入路,能明显减少抓捕次数,可为经股静脉回收梭形滤器时入路选择提供参考。

Objective

Investigating the impact of the retrieval hook orientation of inferior vena cava filters implanted via the femoral vein and the choice of femoral vein approach during retrieval on the number of capture attempts.

Methods

26 patients with lower limb deep vein thrombosis with or without pulmonary embolism were treated by inserting an inferior vena cava filter through the femoral vein. After anticoagulation and thrombectomy, the inferior vena cava filter was removed. Among them, there were 9 cases of retrieving filters through the contralateral femoral vein approach with the opening direction of the retrieval hook, and 17 cases through the ipsilateral approach. Following the removal of the filter, the patients underwent oral anticoagulant therapy for a duration of six months and were subjected to regular follow-up examinations.

Results

26 patients successfully removed the filters. Nine cases were retrieved from the contralateral femoral vein via the retrieval hook opening direction, with 7-12 captures, while 17 cases were retrieved from the ipsilateral approach, with 1-4 captures. The difference was statistically significant (P<0.001).

Conclusion

When retrieving a filter via the femoral venous approach, selecting the same side as the opening direction of the femoral venous access can significantly reduce the number of captures, making. It can serve as a reference for selecting the approach when retrieving the biconical inferior vena cava filter via the femoral vein.

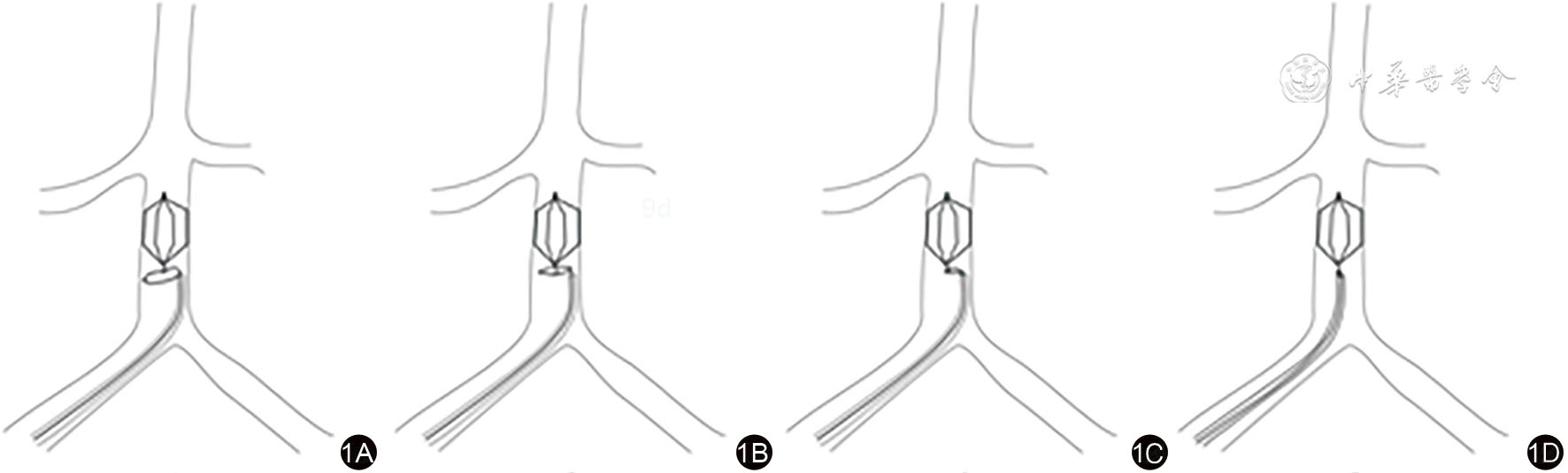

图1 滤器开口方向同侧股静脉入路回收示意图 图1A:右侧股静脉入路时抓捕器进入下腔静脉时,抓捕器将贴着下腔静脉左侧壁,鹅颈圈抓捕器释放时,其头端位于下腔静脉右侧。图1B~1D:回收鹅颈圈时,其头端将由右向左收缩,滤器回收钩开口在下腔静脉的右侧,则鹅颈圈可顺利进入回收钩内。
[1]
中华医学会外科学分会血管外科学组. 深静脉血栓形成的诊断和治疗指南(第三版)[J]. 中华普通外科杂志, 2017, 32(9): 807-812.
[2]
Laporte S, Mismetti P, Decousus H, et al. Clinical predictors for fatal pulmonary embolism in 15520 patients with venous thromboembolism: findings from the Registro Informatizado dela Enfermedad Trombo Embolica venosa(RIETE) Registry[J]. Circulation, 2008, 117(13): 1711-1716.
[3]
Goldhaber SZ, Visani L, De Rosa M. Acute pulmonary embolism: clinical outcomes in the International Cooperative Pulmonary Embolism Registry(ICOPER)[J]. Lancet, 1999, 353(9162): 1386-1389.
[4]
Flannery LD, Shabani N. Embolization of struts from an inferior vena cava filter[J]. N Engl J Med, 2018, 378(15): e21.
[5]
Geerts W, Selby R. Inferior vena cava filter use and patient safety: legacy or science?[J]. Hematology Am Soc Hematol Educ Program, 2017, 2017(1): 686-692.
[6]
林晓东, 杨红伟, 王祖辉, 等. 下腔静脉滤器断裂后腔内技术取出1例[J]. 介入放射学杂志, 2021, 30(3): 321-322.
[7]
Turba UC, Arslan B, Meuse M, et al. Günter tulip filter retrieval experience: predictors of successful retrieval[J]. Cardiovasc Intervent Radiol, 2010, 33(4): 732-738.
[8]
Geisbüsch P, Benenati JF, Pena CS, et al. Retrievable inferior vena cava filters: factors that affect retrieval success[J]. Cardiovasc Intervent Radiol, 2012, 35(5): 1059-1065.
[9]
Al-Hakim R, Kee ST, Olinger K, et al. Inferior vena cava filter retrieval: effectiveness and complications of routine and advanced techniques[J]. J Vasc Interv Radiol, 2014, 25(6): 933-939.
[10]
Von Stempel C, Hague J, Brookes J. Excimer laser assisted complex inferior vena cava filter retrieval: a single institution's experience over 6 years[J]. Clin Radiol, 2019, 74(1): 79. e15-79. e20.
[11]
中国医师协会介入医师分会, 中华医学会放射学分会介入专业委员会, 中国静脉介入联盟. 下腔静脉滤器置入术和取出术规范的专家共识(第2版)[J]. 中华医学杂志, 2020, 100(27): 2092-2101.
[12]
White RH, Brunson A, Romano PS, et al. Outcomes after vena cava filter use in noncancer patients with acute venous thromboembolism: a population-based study[J]. Circulation, 2016, 133(21): 2018-2029.
[13]
Balabhadra S, Kuban JD, Lee S, et al. Association of inferior vena cava filter placement with rates of pulmonary embolism in patients with cancer and acute lower extremity deep venous thrombosis[J]. JAMA Netw Open, 2020, 3(7): e2011079.
[14]
Gu J, Xu K, Teng G. Consensus among Chinese experts on standard interventional therapy for deep venous thrombosis of lower extremity(second edition)[J]. J Interv Med, 2018, 1(3): 125-136.
[15]
刘利国, 张秀军. 困难滤器回收策略[J]. 介入放射学杂志, 2022, 31(9): 934-940.
[16]
王书青, 胡家钱, 廉维帅, 等. 下腔静脉滤器回收安全性和滤器附着物组织学分析[J]. 介入放射学杂志, 2024, 33(10): 1073-1077.
