中华介入放射学电子杂志 ›› 2026, Vol. 14 ›› Issue (02) : 157 -163. doi: 10.3877/cma.j.issn.2095-5782.2026.02.005

论著

动脉化疗栓塞联合锥形束断层扫描引导乙醇注射治疗危险部位小肝癌的疗效与安全性
印于, 俞斌, 冯文聪, 杨俊, 倪才方, 朱晓黎, 李智, 李明明()
  1. 215006 苏州,苏州大学附属第一医院介入科
  • 收稿日期:2025-11-06 出版日期:2026-05-25
  • 通信作者: 李明明

Efficacy and Safety of Transarterial Chemoembolization Combined with Cone-Beam CT–Guided Percutaneous Ethanol Injection for Small Hepatocellular Carcinoma in High-Risk Locations

Yu Yin, Bin Yu, Wencong Feng, Jun Yang, Caifang Ni, Xiaoli Zhu, Zhi Li, Mingming Li()

  1. Department of Interventional Radiology, The First Affiliated Hospital of Soochow University, Suzhou 215006, China
  • Received:2025-11-06 Published:2026-05-25
  • Corresponding author: Mingming Li
引用本文:

印于, 俞斌, 冯文聪, 杨俊, 倪才方, 朱晓黎, 李智, 李明明. 动脉化疗栓塞联合锥形束断层扫描引导乙醇注射治疗危险部位小肝癌的疗效与安全性[J/OL]. 中华介入放射学电子杂志, 2026, 14(02): 157-163.

Yu Yin, Bin Yu, Wencong Feng, Jun Yang, Caifang Ni, Xiaoli Zhu, Zhi Li, Mingming Li. Efficacy and Safety of Transarterial Chemoembolization Combined with Cone-Beam CT–Guided Percutaneous Ethanol Injection for Small Hepatocellular Carcinoma in High-Risk Locations[J/OL]. Chinese Journal of Interventional Radiology(Electronic Edition), 2026, 14(02): 157-163.

目的

探讨经导管动脉化疗栓塞术(transarterial chemoembolization, TACE)联合锥形束计算机断层扫描(cone-beam computed tomography, CBCT)引导下经皮无水乙醇注射术(percutaneous ethanol injection, PEI)同步治疗危险部位小肝癌的临床疗效与安全性。

方法

回顾性分析2019年1月至2023年12月苏州大学附属第一医院介入科接受CBCT引导下TACE联合PEI同步治疗的61例危险部位小肝癌患者(共64个病灶)的临床资料。于术后1、3、6、12个月进行随访,采用改良实体瘤评价标准判定肿瘤是否完全消融,计算初始完全消融率、二次完全消融率及最终完全消融率;分析无复发生存期(recurrence-free survival, RFS)、局部肿瘤进展(local tumor progression, LTP)及不良反应。

结果

TACE联合CBCT引导下PEI同步治疗危险部位小肝癌的技术操作成功率为100%。初始完全消融率为93.8%(60/64);4个病灶未达完全消融,经追加PEI治疗后均达到完全消融,最终完全消融率达100%。至随访截止,61例患者(64个病灶)中,肿瘤复发率为44.3%(27/61),LTP发生率为19.7%(12/61)。平均RFS为34.75个月(95% CI: 28.99 – 40.50),平均至LTP时间为45.33个月(95% CI: 39.51 – 51.15)。单因素及多因素分析显示,肿瘤最大直径(≥2 cm且<3 cm)是影响RFS的独立危险因素(P<0.001)。研究中未发生严重不良事件。

结论

TACE联合CBCT引导下PEI同步治疗危险部位小肝癌安全有效。

Objective

To assess the clinical efficacy and safety of transarterial chemoembolization (TACE) combined with cone-beam computed tomography (CBCT)–guided percutaneous ethanol injection (PEI) performed simultaneously for small hepatocellular carcinomas (HCCs) located in high-risk areas.

Methods

A retrospective study was conducted on 61 patients (64 lesions) with high-risk HCC who underwent simultaneous CBCT-guided TACE and PEI at the Department of Interventional Radiology, The First Affiliated Hospital of Soochow University, between January 2019 and December 2023. Follow-up evaluations were performed at 1, 3, 6, and 12 months after treatment. Complete ablation was determined based on the absence of arterial enhancement according to mRECIST criteria. The initial complete ablation rate, secondary complete ablation rate, and final complete ablation rate were calculated. Recurrence-free survival (RFS), local tumor progression (LTP), and adverse events were also analyzed.

Results

The technical success rate was 100%. The initial complete ablation rate was 93.8% (60/64). Four lesions did not achieve complete ablation after the initial treatment; all subsequently achieved complete ablation following additional PEI, resulting in a final complete ablation rate of 100%. At the end of follow-up, among 61 patients (64 lesions), the overall tumor recurrence rate was 44.3% (27/61), and the incidence of LTP was 19.7% (12/61). The mean RFS was 34.75 months (95% CI: 28.99–40.50), and the mean time to LTP was 45.33 months (95% CI: 39.51–51.15). Both univariate and multivariate analyses demonstrated that maximum tumor diameter (≥2 cm and <3 cm) was an independent risk factor for RFS (P < 0.001). No severe treatment-related adverse events occurred during or after the procedure.

Conclusion

Simultaneous TACE combined with CBCT-guided PEI is a safe and effective therapeutic approach for small HCCs in high-risk anatomical locations, achieving excellent tumor control with minimal complications.

图1 TACE联合CBCT引导下PEI同步治疗危险部位小肝癌典型病例 男性患者,57岁,肝S6段小肝癌。图1A:术前增强MRI动脉期显示肝S6段包膜下一枚直径10 mm的肝癌结节(白色箭头),邻近肠管;图1B:DSA造影未能清晰显示病灶;图1C:使用栓塞导航软件识别肿瘤供血血管并进行肝动脉化疗栓塞术;图1D、1E:根据TACE治疗后的CBCT图像规划穿刺路径并进行穿刺导航,横断位及矢状位;图1F:术后3个月复查增强MRI,提示肿瘤完全坏死。TACE:经导管动脉化疗栓塞术;CBCT:锥形束计算机断层扫描;PEI:经皮无水乙醇注射术;DSA:数字减影血管造影;MRI:磁共振成像。
表1 患者基线资料
表2 病灶危险部位分布

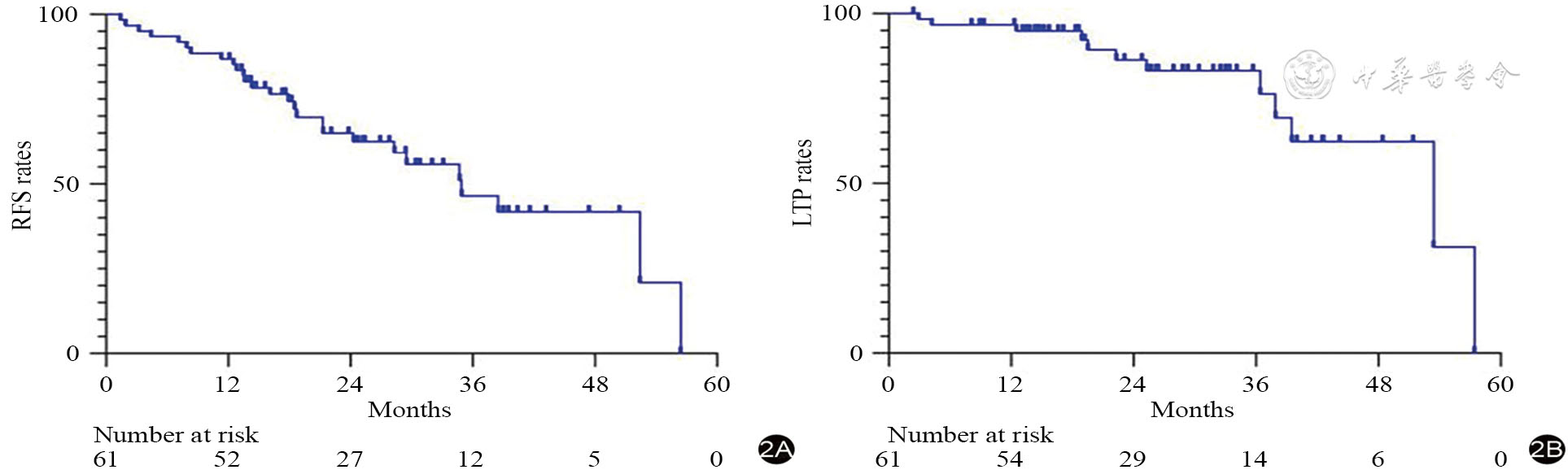

图2 无复发生存率与局部肿瘤进展发生率的生存曲线图 图2A:无复发生存率;图2B:局部肿瘤进展发生率
表3 无复发生存期单因素及多因素分析

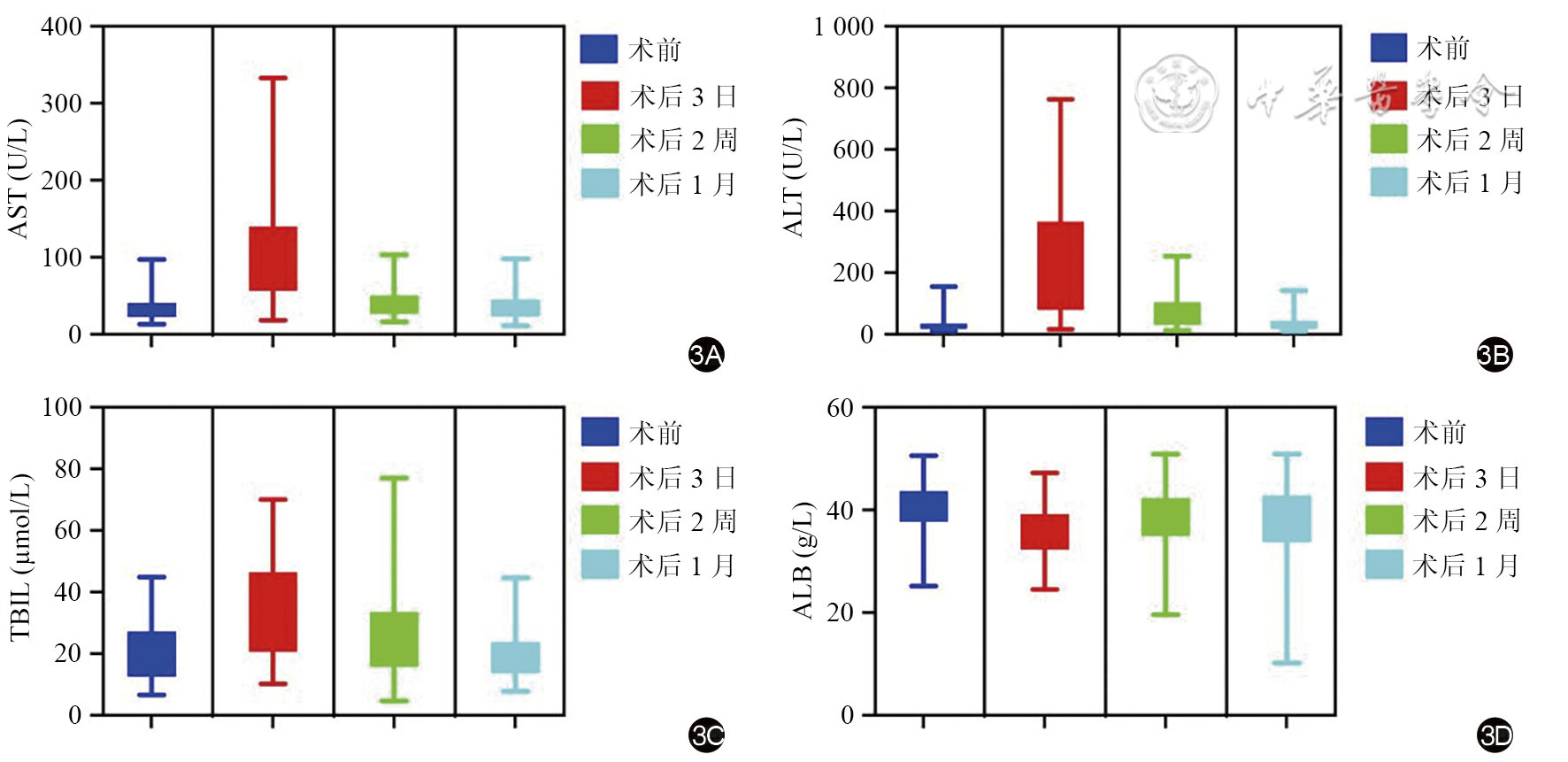

图3 患者治疗前后肝功能变化 图3A:治疗前后AST变化情况;图3B:治疗前后ALT变化情况;图3C:治疗前后TBIL变化情况;图3D:治疗前后ALB变化情况。AST为天冬氨酸氨基转移酶;ALT为丙氨酸氨基转移酶;TBIL为总胆红素;ALB为白蛋白。
[1]
郑传胜. 经皮射频消融术治疗肝癌的难点与进展[J]. 中华放射学杂志, 2024, 58(11): 1325-1330.
[2]
Feng W, Guo Y, Lu S, et al. Transarterial chemoembolization combined with percutaneous ethanol injection for the treatment of hepatocellular carcinoma at high-risk areas[J]. J Cancer Res Ther, 2025, 21(2): 395-400.
[3]
Peng CW, Teng W, Lui KW, et al. Complete response at first transarterial chemoembolization predicts favorable outcome in hepatocellular carcinoma[J]. Am J Cancer Res, 2021, 11(10): 4956.
[4]
中华人民共和国国家卫生健康委员会. 原发性肝癌诊疗指南(2024年版)[J]. 临床肝胆病杂志, 2024, 40(5): 893-918.
[5]
倪管崟, 缪小赟, 丁家安, 等. 锥形束计算机断层扫描在肝癌介入诊疗中的应用进展[J]. 中华介入放射学电子杂志, 2024, 12(3): 256-260.
[6]
Lencioni R, Llovet JM. Percutaneous ethanol injection for hepatocellular carcinoma: alive or dead?[J]. J Hepatol, 2005, 43(3): 377-380.
[7]
Shiina S, Tateishi R, Imamura M, et al. Percutaneous ethanol injection for hepatocellular carcinoma: 20‐year outcome and prognostic factors[J]. Liver Int, 2012, 32(9): 1434-1442.
[8]
Lin SM, Lin CJ, Lin CC, et al. Randomised controlled trial comparing percutaneous radiofrequency thermal ablation, percutaneous ethanol injection, and percutaneous acetic acid injection to treat hepatocellular carcinoma of 3 cm or less[J]. Gut, 2005, 54(8): 1151-1156.
[9]
Li Z, Xu K, Zhou X, et al. TACE sequential MWA guided by cone-beam computed tomography in the treatment of small hepatocellular carcinoma under the hepatic dome[J]. BMC cancer, 2023, 23(1): 600.
[10]
卓恩挺, 郑扬慈, 符国宏, 等. 肝动脉化疗栓塞术联合无水酒精消融术在老年原发性肝癌中的临床效果[J]. 中国老年学杂志, 2021, 41(14): 3.
[11]
滕皋军. 肝癌介入治疗的精准选择与合理应用[J]. 中国实用外科杂志, 2024, 44(9): 992-995.
[12]
国家感染性疾病临床医学研究中心, 北京医学会肝病学分会, 中国老年学及老年医学学会转化医学分会. 晚期原发性肝癌精细化诊疗管理专家共识(2023年版)[J]. 中华肝脏病杂志, 2023, 31(9): 910-920.
[13]
中国医师协会介入医师分会临床诊疗指南专委会. 锥形束CT应用于肝脏恶性肿瘤介入诊疗的专家共识[J]. 中华放射学杂志, 2024, 58(6): 596-602.
[14]
Liu Y, Wu K, Xu K, et al. Cone beam computed tomography-guided microwave ablation for hepatocellular carcinoma under the hepatic dome: a retrospective case-control study[J]. Quant Imaging Med Surg, 2022, 12(10): 4837.
[15]
Yao XS, Yan D, Jiang XX, et al. Short-term outcomes of radiofrequency ablation for hepatocellular carcinoma using cone-beam computed tomography for planning and image guidance[J]. World J Clin Cases, 2021, 9(7): 1580.
[16]
Hyun D, Cho SK, Shin SW, et al. Early stage hepatocellular carcinomas not feasible for ultrasound-guided radiofrequency ablation: comparison of transarterial chemoembolization alone and combined therapy with transarterial chemoembolization and radiofrequency ablation[J]. Cardiovasc Intervent Radiol, 2016, 39(3): 417-425.
[17]
Dettmer A, Kirchhoff TD, Gebel M, et al. Combination of repeated single-session percutaneous ethanol injection and transarterial chemoembolisation compared to repeated single-session percutaneous ethanol injection in patients with non-resectable hepatocellular carcinoma[J]. World J Gastroenterol, 2006, 12(23): 3707.
[18]
鞠莹, 沈赵英. 无水乙醇经皮穿刺联合肝动脉化疗栓塞治疗原发性肝癌的临床疗效[J]. 中国肝脏病杂志(电子版), 2020, 12(4): 6.
[19]
张申, 张磊, 仲斌演, 等. “TACE 抵抗/失败”——需要全面认识[J]. 介入放射学杂志, 2020, 29(8): 743-747.
[20]
Hendriks P, Sudiono DR, Schaapman JJ, et al. Thermal ablation combined with transarterial chemoembolization for hepatocellular carcinoma: What is the right treatment sequence?[J]. Eur J Radiol, 2021, 144: 110006.
