低功率与高功率微波消融对活体猪肺组织消融区域的影响
邓屹1, 崔伟2, 陈兢兢3, 乐艳青3, 崔景华3, 叶苏意4, 陈俞溪3, 陈泳衡3, 李泳瑜5, 陈静琪3, 袁兵4, 许荣德2,(), 李静3,()
  1. 1 410011 湖南 长沙,中南大学湘雅二医院肿瘤科
    2 510080 广东广州,南方医科大学附属广东省人民医院(广东省医学科学院)微创介入科
    3 510080 广东广州,南方医科大学附属广东省人民医院(广东省医学科学院)呼吸与危重症医学科
    4 650500 云南 昆明,昆明理工大学医学部
    5 510080 广东广州,南方医科大学附属广东省人民医院(广东省医学科学院)广东省心血管病研究所
  • 收稿日期:2025-02-18 出版日期:2025-11-25
  • 通信作者: 许荣德, 李静
  • 基金资助:
    国家重点研究发展计划(2023YFC2507104); 国家自然科学基金(82102163); 2024年度基础与应用基础研究专题(优秀博士“续航”项目)(2024A04J2459)

The effects of low-power and high-power microwave ablation on the ablation zones in normal porcine lung tissue

Yi Deng1, Wei Cui2, Jingjing Chen3, Yanqing Le3, Jinghua Cui3, Suyi Ye4, Yuxi Chen3, Yongheng Chen3, Yongyu Li5, Jingqi Chen3, Bing Yuan4, Rongde Xu2,(), Jing Li3,()

  1. 1 Department of Oncology, the Second Xiangya Hospital of Central South University, Hunan, Changsha, 410011, China
    2 Department of Interventional Radiology, Guangdong Provincial People's Hospital (Guangdong Academy of Medical Sciences), Southern Medical University. Guangzhou, Guangdong, 510080, China
    3 Department of Pulmonary and Critical Care Medicine, Guangdong Provincial People's Hospital (Guangdong Academy of Medical Sciences), Southern Medical University. Guangzhou, Guangdong, 510080, China
    4 Medical School, Kunming University of Science and Technology, Kunming, Yunnan, 650500, China
    5 Department of Cardiology, Guangdong Cardiovascular Institute, Guangdong Provincial People's Hospital (Guangdong Academy of Medical Sciences), Southern Medical University. Guangzhou, Guangdong, 510080, China
  • Received:2025-02-18 Published:2025-11-25
  • Corresponding author: Rongde Xu, Jing Li
  • About author:

    Co-first authors: Deng Yi, Cui Wei

引用本文:

邓屹, 崔伟, 陈兢兢, 乐艳青, 崔景华, 叶苏意, 陈俞溪, 陈泳衡, 李泳瑜, 陈静琪, 袁兵, 许荣德, 李静. 低功率与高功率微波消融对活体猪肺组织消融区域的影响[J/OL]. 中华介入放射学电子杂志, 2025, 13(04): 366-372.

Yi Deng, Wei Cui, Jingjing Chen, Yanqing Le, Jinghua Cui, Suyi Ye, Yuxi Chen, Yongheng Chen, Yongyu Li, Jingqi Chen, Bing Yuan, Rongde Xu, Jing Li. The effects of low-power and high-power microwave ablation on the ablation zones in normal porcine lung tissue[J/OL]. Chinese Journal of Interventional Radiology(Electronic Edition), 2025, 13(04): 366-372.

目的

比较低功率(40 W)与高功率(100 W)微波消融对活体猪肺组织消融区域的变化情况。

方法

对活体猪肺进行微波消融,根据消融功率分为40 W组和100 W组,设置消融时间各为1、3、5、8、10 min,每组实验重复3次,共30次消融。记录消融区域的最大长径、短径/厚度、体积及纵横比,取材观察消融区域的病理情况。

结果

当消融功率一定时,随着时间的增加,消融区域的长径、短径/厚度、体积逐渐增大(均P<0.05);40 W组消融时间在1~10 min时,其消融长径为(13.6±6.0) mm,短径/厚度为(10.4±3.8) mm,纵横比为1.3±0.2。100 W组消融时间在1~10 min时,其消融长径为(31.1±9.1) mm,短径/厚度为(19.9±6.5) mm,纵横比为1.6±0.2。40 W组在消融时间为8和10 min时,消融区域的长径、短径/厚度及体积的增加趋于平缓,长径和短径/厚度均未超过20 mm,且纵横比维持在1.3~1.4。而100 W组的消融区域长径和短径/厚度在相同时间内仍持续增长,纵横比维持在1.4~1.5。镜下可见消融区域从内到外依次为凝固性坏死区和肺组织充血水肿及炎性细胞浸润区,可见炎性细胞浸润。

结论

消融时间相同的情况下,高功率(100 W)微波消融较低功率(40 W)微波消融能产生更大消融区域,更适用于直径大于20 mm病灶的消融治疗,其在临床中的应用值得进一步研究。

Objective

To compare the changes in the ablation zone of porcine lung tissue in vivo between low-power (40 W) and high-power (100 W) microwave ablation (MWA).

Methods

Microwave ablation was performed on porcine lungs in vivo. The ablation was divided into two groups based on power: 40 W and 100 W. Ablation times were set at 1 min, 3 min, 5 min, 8 min, and 10 min, with each group repeated three times, for a total of 30 ablations. The maximum long axis, short axis/thickness, volume, and aspect ratio of the ablation zone were recorded, and histological examination of the ablation zone was performed.

Results

When the ablation power was constant, the long axis, short axis/thickness, and volume of the ablation zone increased gradually with time (all P<0.05). For the 40 W group with ablation times ranging from 1 to 10 minutes, the long axis of the ablation zone was 13.6±6.0 mm, the short axis/thickness was 10.4±3.8 mm, and the aspect ratio was 1.3±0.2. For the 100 W group with ablation times ranging from 1 to 10 minutes, the long axis of the ablation zone was 31.1±9.1 mm, the short axis/thickness was 19.9±6.5 mm, and the aspect ratio was 1.6±0.2. In the 40 W group, the increase in long axis, short axis/thickness, and volume of the ablation zone became stable at 8 min and 10 min of ablation, with neither long diameter nor short diameter/thickness exceeding 20 mm, and the aspect ratio remained between 1.3 and 1.4. In contrast, the long axis and short axis/thickness of the ablation zone in the 100 W group continued to increase within the same time frame, with the aspect ratio maintained between 1.4 and 1.5. Histologically, the ablation zone showed a coagulative necrosis zone at the center, surrounded by a zone of pulmonary tissue congestion, edema, and inflammatory cell infiltration, with visible inflammatory cell infiltration.

Conclusion

When the ablation time is the same, high-power (100 W) microwave ablation generates a larger ablation zone compared to low-power (40 W) microwave ablation and is more suitable for the ablation treatment of lesions with a diameter greater than 20 mm. Further investigation into its clinical application is warranted.

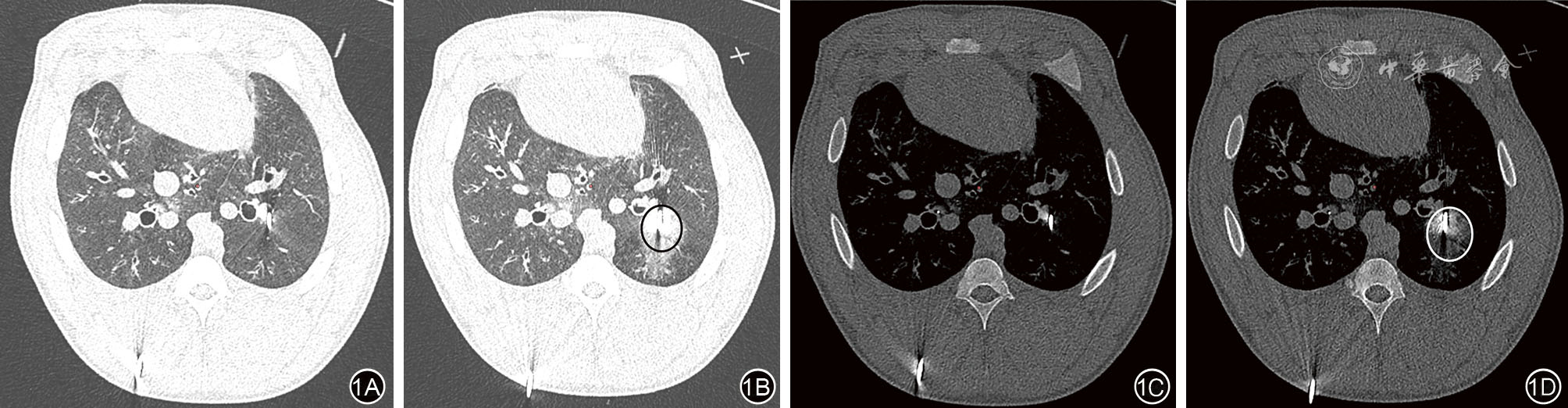

图1 100 W 8 min活体猪肺微波消融术中CT图 1A、1B:微波消融前后的肺窗,黑圈为消融范围;1C、1D:微波消融前后的纵隔窗,白圈所示为消融范围。
图2 活体猪肺微波消融大体图 A1~5:40 W组在消融时间为1、3、5、8、10 min的消融情况;B1~5:100 W组在消融时间分别为1、3、5、8、10 min的消融情况;可见消融病灶中沿针道的箭头状碳化区、凝固区和充血区。

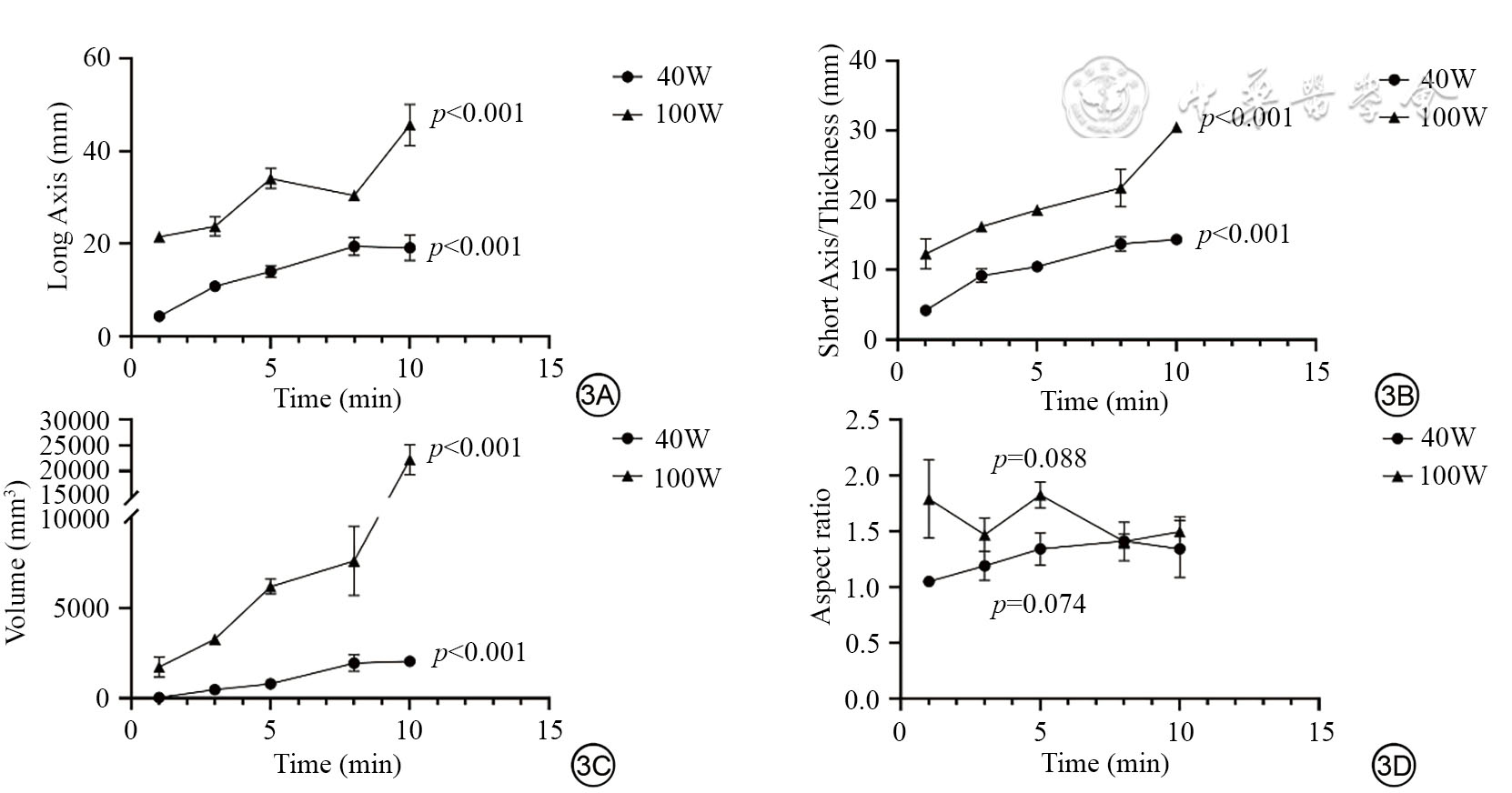

图3 不同消融时间的活体猪肺微波消融区域变化图 3A:消融功率分别设置为40 W、100 W时,消融区域长径随时间的变化情况;3B:消融功率分别设置为40 W、100 W时,消融区域短径/厚度随时间的变化情况;3C:消融功率分别设置为40 W、100 W时,消融区域体积随时间的变化情况;3D:消融功率分别设置为40 W、100 W时,消融区域纵横比随时间的变化情况。
表1 40W组和100W组的猪肺微波消融区域情况(
±s
图4 消融功率为40 W,消融时间为8 min时的活体猪肺微波消融区域镜下病理图 4A:HE×40;4B:HE×100;4C:HE×100;4D:HE×400。肺脏组织内局部空腔形成,空腔边缘组织呈凝固性坏死,坏死周围组织变性,肺泡间隔血管淤血,可见少量炎症细胞。周围肺泡腔内渗出及出血。红色箭头为凝固性坏死,蓝色箭头为淋巴细胞,黄色箭头为变性组织
图5 消融功率为100 W,消融时间为8 min时的活体猪肺微波消融区域镜下病理图 5A:HE×40;5B:HE×100;5C:HE×100;5D:HE×400。肺脏组织内局部空腔形成,空腔边缘组织呈凝固性坏死,坏死周围组织变性,肺泡间隔血管淤血,可见少量炎症细胞。周围肺泡腔内渗出液。红色箭头为凝固性坏死,蓝色箭头为巨噬细胞。
