中华介入放射学电子杂志 ›› 2026, Vol. 14 ›› Issue (02) : 141 -149. doi: 10.3877/cma.j.issn.2095-5782.2026.02.003

综述

膝动脉栓塞术治疗膝关节骨关节炎疼痛的研究进展
王富军1,2, 王萱1, 张婧娴2,()
  1. 1 030000 太原,山西医科大学医学影像学院
    2 030000 太原,山西医科大学第五临床医学院肿瘤与血管介入治疗科
  • 收稿日期:2025-08-22 出版日期:2026-05-25
  • 通信作者: 张婧娴

Genicular Artery Embolization: Recent Advances in Managing Knee Osteoarthritis Pain

Fujun Wang1,2, Xuan Wang1, Jingxian Zhang2,()

  1. 1 Department of Medical Imaging, Shanxi Medical University, Taiyuan 030000, China
    2 Department of Interventional Oncology and Vascular Intervention, The Fifth Clinical Medical School of Shanxi Medical University, Taiyuan 030000, China
  • Received:2025-08-22 Published:2026-05-25
  • Corresponding author: Jingxian Zhang
引用本文:

王富军, 王萱, 张婧娴. 膝动脉栓塞术治疗膝关节骨关节炎疼痛的研究进展[J/OL]. 中华介入放射学电子杂志, 2026, 14(02): 141-149.

Fujun Wang, Xuan Wang, Jingxian Zhang. Genicular Artery Embolization: Recent Advances in Managing Knee Osteoarthritis Pain[J/OL]. Chinese Journal of Interventional Radiology(Electronic Edition), 2026, 14(02): 141-149.

膝关节骨关节炎(knee osteoarthritis, KOA)因其显著且持续的疼痛和功能障碍,已成为全球主要的致残因素之一。其疼痛的核心机制是机械损伤与关节退变触发“滑膜炎症-血管增生-神经支配异常-敏化”的恶性循环。传统保守治疗(如非甾体抗炎药、关节内注射)疗效有限,而全膝关节置换术(total knee arthroplasty, TKA)存在高风险和恢复期长等问题。膝动脉栓塞术(genicular artery embolization, GAE)作为一种新兴微创介入疗法,通过靶向栓塞膝关节异常新生血管,阻断滑膜炎症介导的神经血管耦联通路,从而达到缓解疼痛的目的。本文综述了KOA疼痛的病理生理机制、GAE的临床疗效、安全性及当前关键争议的最新循证依据,评估其在KOA阶梯治疗体系中的潜在价值与定位,并探讨未来研究方向。

Knee Osteoarthritis (KOA), characterized by significant and persistent pain and functional impairment, has emerged as a major global cause of disability. The core mechanism underlying its pain involves mechanical injury and joint degeneration triggering a vicious cycle of "synovitis-vascular proliferation-aberrant innervation-sensitization". Conventional conservative treatments (such as NSAIDs and intra-articular injections) offer limited efficacy, while Total Knee Arthroplasty (TKA) is constrained by its high-risk profile and prolonged recovery period. Genicular Artery Embolization (GAE), an emerging minimally invasive interventional therapy, aims to alleviate pain by selectively embolizing abnormal neovessels within the knee joint. This targeted approach disrupts the neurovascular coupling pathway mediated by synovial inflammation. This article systematically reviews the current evidence-based basis regarding the pathophysiology of KOA pain, GAE's clinical efficacy, safety profile, and key ongoing deliberations. It evaluates the potential value and positioning of GAE within the stepwise treatment framework for KOA and explores future research directions.

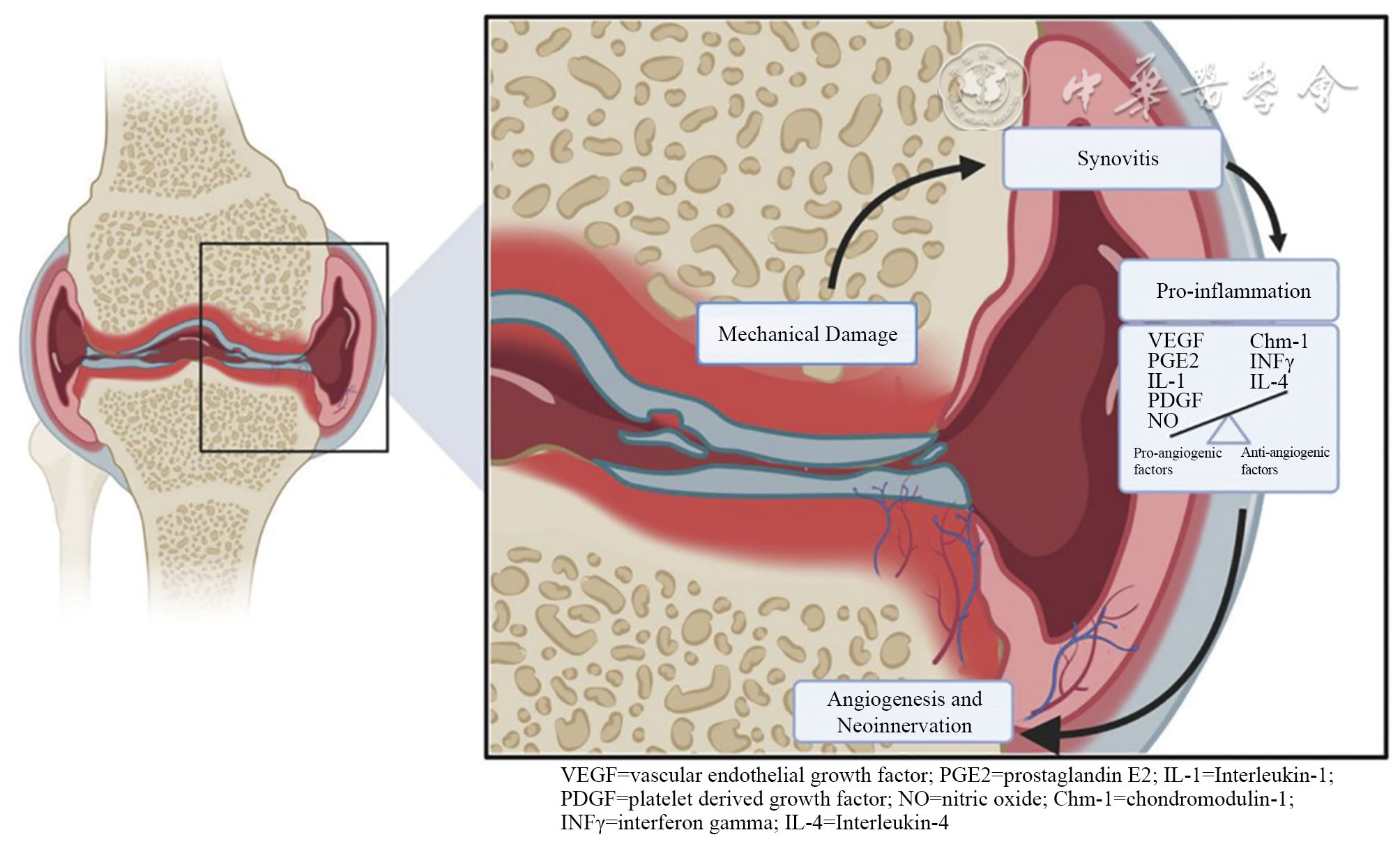

图1 促血管生成与抗血管生成细胞因子、炎症生物标志物的平衡机制解析[16] 注:Mechanical Damage,机械损伤;Synovitis,滑膜炎;Pro-inflammation,促炎症反应;Angiogenesis and Neoinnervation,血管新生与神经新生;Pro-angiogenic factors,促血管生成因子;VEGF,血管内皮生长因子;PGE2,前列腺素E2;IL-1,白细胞介素-1;PDGF,血小板衍生生长因子;Anti-angiogenic factors,抗血管生成因子;Chm-1,软骨调节素-1;INFγ,γ-干扰素;IL-4,白细胞介素-4;NO,一氧化氮。

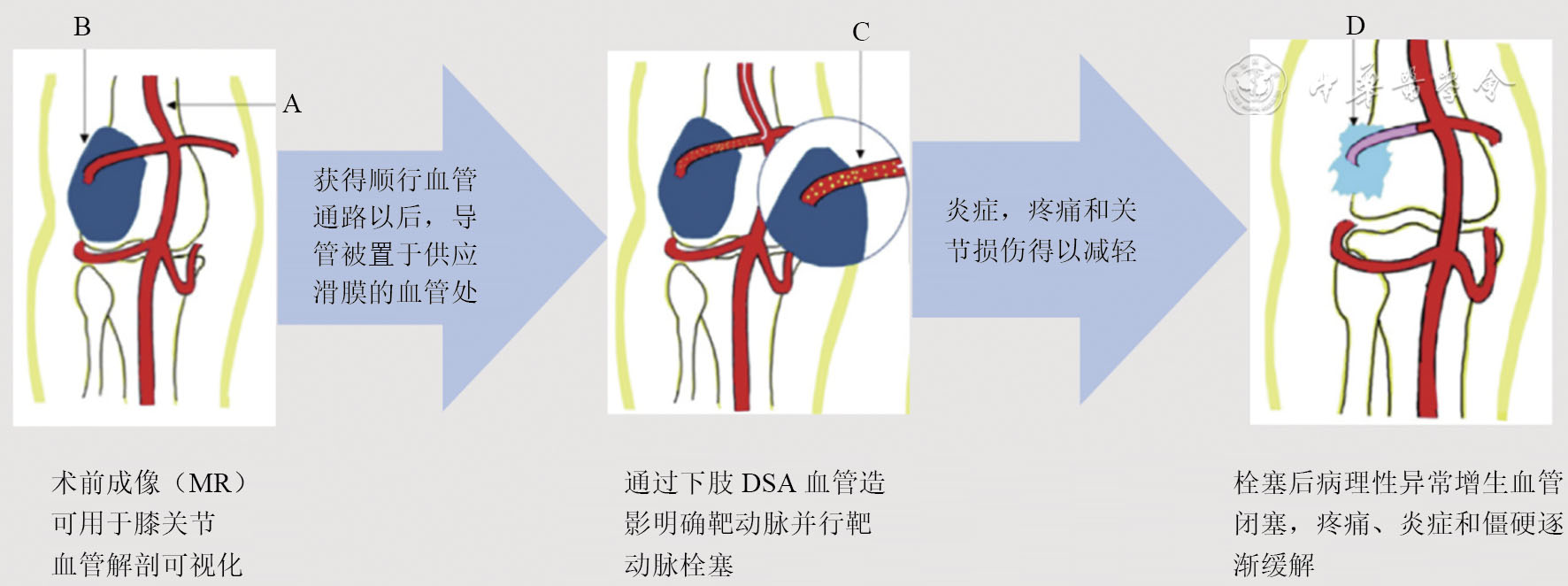

图2 膝动脉栓塞术技术路径与操作要点示意图 A:正常膝动脉网;B:异常新生血管形成;C:病理新生血管栓塞术;D:栓塞术后异常新生血管闭塞。
图3 膝动脉栓塞术真实影像案例 3A:栓塞前图像,明显可见血管网密集;3B:栓塞后图像,异常增生血管闭塞,异常血流供应被阻断。
表1 膝动脉栓塞术治疗膝关节骨关节炎疼痛的研究证据汇总表
研究代码 研究类型 样本量 K–L分级 主要终点 再干预率 并发症率 不良反应发生率(随访时间) 参考文献
Landers S 2023 前瞻性单中心三盲RCT 58例(干预29例,对照30例) 2级 100% KOOS疼痛评分变化 1.7%(对照1例6个月行TKA) 无严重并发症;轻微5例(穿刺瘀斑) 12个月:轻微8.5%,严重0% [35]
van Zadelhoff TA 2024 前瞻性单中心双盲RCT 58膝(单侧) 1级6.9%,2级36.2%,3级56.9% KOOS疼痛评分 0% 无严重并发症;GAE组轻微28例次,假手术组5例次 4个月:GAE组79.3%,假手术组17.2% [41]
Gill SD 2023 前瞻性单中心队列 35膝(单侧) 2级33.3%,3级48.5%,4级18.2% 达标响应率 0% 无严重并发症;轻微2例次(瘀青、皮肤发红) 6个月:总6.1% [25]
Sun C 2024 前瞻性单中心队列 37膝 轻中度1~2级28膝,重度3~4级9膝 VAS、WOMAC、临床成功率 3.0%(1例) 无严重并发症;轻微9例 12个月:轻微27.3%,严重0% [26]
Lee SH 2019 前瞻性单中心队列 71膝 轻中度1~3级59膝,重度4级12膝 多时点VAS变化 7.3%(重度3例6个月行TKA) 无严重并发症;轻微10例 12个月:轻微14.1%,严重0% [27]
Hindsø L 2024 前瞻性单中心单臂队列 17例(技术成功率85%) 1级12%,2级41%,3级47% VAS、患者报告结局 0% 无严重并发症;轻微6例 6个月:轻微35.3%,严重0% [28]
孙长浩 2022 前瞻性单中心单臂队列 23膝 2级21.7%,3级47.8%,4级30.1% VAS、WOMAC 0% 无严重并发症;轻微7例 6个月:轻微41.2%,严重0% [29]
Sapoval M 2024 前瞻性多中心开放队列 23膝 3级45%,4级55% 术后1个月严重不良事件 0% 严重1例(造影剂肾损伤);轻微2例 1个月:严重4.5%,轻微9.1% [33]
Taheri Amin A 2025 前瞻性单中心单臂队列 43膝(单侧) 1级21%,2级37%,3级42% KOOS疼痛评分变化 11.6%(5例4~11个月行TKA) 轻微4例(短暂皮肤发红) 12个月:总9.3% [36]
Hindsø L 2024 前瞻性单中心单臂队列 17膝 2级12%,3级41%,4级47% 滑膜炎评分 0% 无并发症 6个月:轻微0%,严重0% [38]
Wang B 2023 前瞻性单中心队列 24膝 1级20.8%,2级58.3%,3级20.8% 骨髓病变、VAS 13.6%(3例行TKA) 无严重并发症;轻微7例次 6个月:轻微31.8%,严重0% [39]
Little MW 2024 前瞻性单中心单臂队列 40例(技术成功率87%) 1级10.9%,2级41.3%,3级47.8% VAS、KOOS 22.5%(9例18个月行TKA) 严重1例(腘窝DVT);轻微6例次 2年:轻微15%,严重2.5% [40]
Bagla S 2020 前瞻性多中心单臂队列 20膝(单侧) 1级10%,2级50%,3级40% VAS、WOMAC 0% 无严重并发症;轻微16例次 6个月:轻微80%,严重0% [42]
Min J 2023 回顾性单中心队列 97膝 未报告 VAS、技术/临床成功率 未报告 无严重并发症;轻微59例次 6个月:轻微60.8%,严重0% [34]
Dablan A 2024 回顾性单中心单臂队列 35膝 2级57%,3级29%,4级14% 滑膜炎半定量评分 0% 无严重并发症;轻微6例次 3个月:轻微17.1%,严重0% [37]
[1]
Chlorogiannis DD, Vasilopoulou A, Konstantinidis CI, et al. Kneepain improvement after genicular artery embolization for the management of knee osteoarthritis: an updated systematic review and meta-analysis of 21 studies[J]. Radiologie(Heidelb), 2024, 64(Suppl 1): 32-46.
[2]
Giaretta S, Magni A, Migliore A, et al. A Review of Current Approaches to pain Management in Knee Osteoarthritis with a Focus on Italian Clinical Landscape[J]. J Clin Med, 2024, 13(17): 5176.
[3]
Sellam J, Berenbaum F. The role of synovitis inpathophysiology and clinical symptoms of osteoarthritis[J]. Nat Rev Rheumatol, 2010, 6(11): 625-635.
[4]
Mapp PI, Walsh DA. Mechanisms and targets of angiogenesis and nerve growth in osteoarthritis[J]. Nat Rev Rheumatol, 2012, 8(7): 390-398.
[5]
Okuno Y, Korchi AM, Shinjo T, et al. Midterm Clinical Outcomes and MR Imaging Changes after Transcatheter Arterial Embolization as a Treatment for Mild to Moderate Radiographic Knee Osteoarthritis Resistant to Conservative Treatment[J]. J Vasc Interv Radiol, 2017, 28(7): 995-1002.
[6]
Padia SA, Genshaft S, Blumstein G, et al. Genicular Artery Embolization for the Treatment of Symptomatic Knee Osteoarthritis[J]. JB JS Open Access, 2021, 6(4): e21. 00085.
[7]
中国骨关节炎诊疗指南专家组, 中国老年保健协会疼痛病学分会, 黄东, 等. 中国骨关节炎诊疗指南(2024版)[J]. 中华疼痛学杂志, 2024, 20(03): 323-338.
[8]
Bagla S, Piechowiak R, Sajan A, et al. Multicenter Randomized Sham Controlled Study of Genicular Artery Embolization for Knee pain Secondary to Osteoarthritis[J]. J Vasc Interv Radiol, 2022, 33(1): 2-10. e2.
[9]
Taslakian B, Swilling D, Attur M, et al. Genicular Artery Embolization for Treatment of Knee Osteoarthritis: Interim Analysis of a prospective pilot Trial Including Effect on Serum Osteoarthritis-Associated Biomarkers[J]. J Vasc Interv Radiol, 2023, 34(12): 2180-2189. e3.
[10]
Little MW, Gibson M, Briggs J, et al. Genicular artEry embolizatioN in patiEnts with oSteoarthrItiS of the Knee (GENESIS) Using Permanent Microspheres: Interim Analysis[J]. Cardiovasc Intervent Radiol, 2021, 44(6): 931-940.
[11]
Ro DH, Jang MJ, Koh J, et al. Mechanism of action of genicular artery embolization in a rabbit model of knee osteoarthritis[J]. Eur Radiol, 2023, 33(1): 125-134.
[12]
Angelini F, Widera P, Mobasheri A, et al. Osteoarthritis endotype discovery via clustering of biochemical marker data[J]. Ann Rheum Dis, 2022, 81(5): 666-675.
[13]
Schmelz M, Mantyh P, Malfait AM, et al. Nerve growth factor antibody for the treatment of osteoarthritis pain and chronic low-back pain: mechanism of action in the context of efficacy and safety[J]. Pain, 2019, 160(10): 2210-2220.
[14]
Labarre KW, Zimmermann G. Long-term effects of infrapatellar fat pad SVF infiltration in knee osteoarthritis management: A prospective cohort study[J]. Bone Rep, 2025, 24: 101827.
[15]
Manocchio N, Pirri C, Ljoka C, et al. Long-Term Efficacy of Carboxymethyl-Chitosan in Advanced Knee Osteoarthritis: A Twelve-Month Follow-Up Study on Non-Responders to Hyaluronic Acid[J]. Biomedicines, 2025, 13(2): 270.
[16]
Talaie R, Torkian P, Clayton A, et al. Emerging Targets for the Treatment of Osteoarthritis: New Investigational Methods to Identify Neo-Vessels as Possible Targets for Embolization[J]. Diagnostics (Basel), 2022, 12(6): 1403.
[17]
张昊, 靳勇. 经导管动脉栓塞术治疗膝骨关节炎临床应用及进展[J]. 介入放射学杂志, 2025, 34(02): 206-212.
[18]
Brown JM, Vandeveer ZT, Cadoret D, et al. Genicular Artery Embolization: A Technical Review of Anatomy, Pathophysiology, Current Experiences, and Future Directions[J]. J Clin Med, 2025, 14(6): 2106.
[19]
Bhatia S, Jalaeian H, Kumar J, et al. Two-year outcomes comparing Embosphere® microspheres versus Imipenem Cilastatin for genicular artery embolization inpatients with moderate to severe knee osteoarthritis[J]. Knee, 2023, 41: 38-47.
[20]
Okuno Y, Korchi AM, Shinjo T, et al. Transcatheter arterial embolization as a treatment for medial kneepain inpatients with mild to moderate osteoarthritis[J]. Cardiovasc Intervent Radiol, 2015, 38(2): 336-343.
[21]
Guevara-Noriega KA, Chavez-Abiega R, Castro-Rios JG. Embolization of genicular arteries inpatients with knee osteoarthritis as an alternative for refractorypain treatment: A systematic review[J]. Med Clin(Barc), 2022, 159(12): 592-597.
[22]
Ashraf N, Tahir MJ, Arabi TZ, et al. Safety and Efficacy of Genicular Artery Embolization for Knee Joint Osteoarthritis Associated pain: A Systematic Review[J]. J Endovasc Ther, 2025: 15266028251326770.
[23]
Epelboym Y, Mandell JC, Collins JE, et al. Genicular Artery Embolization as a Treatment for Osteoarthritis Related Kneepain: A Systematic Review and Meta-analysis[J]. Cardiovasc Intervent Radiol, 2023, 46(6): 760-769.
[24]
李永奇, 王刚刚, 王禹基, 等. 膝动脉栓塞治疗膝骨关节炎继发性疼痛的疗效与安全性荟萃分析[J]. 中华医学杂志, 2024, 104(45): 4162-4170.
[25]
Gill SD, Hely R, Hely A, et al. Outcomes after Genicular Artery Embolization Vary According to the Radiographic Severity of Osteoarthritis: Results from a prospective Single-Center Study[J]. J Vasc Interv Radiol, 2023, 34(10): 1734-1739.
[26]
Sun C, Chen Y, Gao Z, et al. Genicular artery embolization for the treatment of knee pain secondary to mild to severe knee osteoarthritis: One year clinical outcomes[J]. Eur J Radiol, 2024, 175: 111443.
[27]
Lee SH, Hwang JH, Kim DH, et al. Clinical Outcomes of Transcatheter Arterial Embolisation for Chronic Knee Pain: Mild-to-Moderate Versus Severe Knee Osteoarthritis[J]. Cardiovasc Intervent Radiol, 2019, 42(11): 1530-1536.
[28]
Hindsø L, Hölmichp, Petersen MM, et al. Transarterial Embolization of Geniculate Arteries Reduces pain and Improves physical Function in Knee Osteoarthritis-A prospective Cohort Study[J]. Diagnostics(Basel), 2024, 14(15): 1627.
[29]
孙长浩, 高知玲, 林坤, 等. 选择性膝动脉栓塞术治疗膝骨关节炎继发性疼痛的疗效分析[J]. 中华医学杂志, 2022, 102(11): 795-800.
[30]
Koucheki R, Dowling KI, Patel NR, et al. Characteristics of Imipenem/Cilastatin: Considerations for Musculoskeletal Embolotherapy[J]. J Vasc Interv Radiol, 2021, 32(7): 1040-1043. e1.
[31]
Torkianp, Golzarian J, Chalian M, et al. Osteoarthritis-Related Knee pain Treated With Genicular Artery Embolization: A Systematic Review and Meta-analysis[J]. OrthopJ Sports Med, 2021, 9(7): 23259671211021356.
[32]
Correa MP, Motta-Leal-Filho JM, Lugokeski R, et al. GAUCHO-Trial Genicular Artery Embolization Using Imipenem/Cilastatin vs. Microsphere for Knee Osteoarthritis: A Randomized Controlled Trial[J]. Cardiovasc Intervent Radiol, 2022, 45(7): 903-910.
[33]
Sapoval M, Querub C, Pereira H, et al. Genicular artery embolization for knee osteoarthritis: Results of the LipioJoint-1 trial[J]. Diagn Interv Imaging, 2024, 105(4): 144-150.
[34]
Min J, Park SW, Hwang JH, et al. Evaluating the Safety and Effectiveness of Quick-Soluble Gelatin Sponge Particles for Genicular Artery Embolization for Chronic Knee pain Associated with Osteoarthritis[J]. J Vasc Interv Radiol, 2023, 34(11): 1868-1874.
[35]
Landers S, Hely R, Hely A, et al. Genicular artery embolization for early-stage knee osteoarthritis: results from a triple-blind single-centre randomized controlled trial[J]. Bone Jt Open, 2023, 4(3): 158-167.
[36]
Taheri Amin A, Frommhold I, Huebner A, et al. Genicular Artery Embolization in Moderate to Severe Knee Osteoarthritis: Technique, Safety and Clinical Outcome[J]. Cardiovasc Intervent Radiol, 2025, 48(3): 340-350.
[37]
Dablan A, Erdim Ç, Güzelbey T, et al. Effectiveness of Genicular Artery Embolization for Reducing Synovitis as Assessed by Contrast-Enhanced MR Imaging in Knee Osteoarthritis: A pilot Study[J]. J Vasc Interv Radiol, 2024, 35(9): 1313-1322. e6.
[38]
Hindsø L, Hölmichp, Petersen MM, et al. Reduction in Synovitis Following Genicular Artery Embolization in Knee Osteoarthritis: A prospective Ultrasound and MRI Study[J]. Diagnostics(Basel), 2024, 14(22): 2564.
[39]
Wang B, Tai TW, Liang KW, et al. Short-Term Effects of Genicular Artery Embolization on Symptoms and Bone Marrow Abnormalities inpatients with Refractory Knee Osteoarthritis[J]. J Vasc Interv Radiol, 2023, 34(7): 1126-1134. e2.
[40]
Little MW, O'Grady A, Briggs J, et al. Genicular Artery embolisation inpatients with Osteoarthritis of the Knee (GENESIS) Using permanent Microspheres: Long-Term Results[J]. Cardiovasc Intervent Radiol, 2024, 47(12): 1750-1762.
[41]
Van Zadelhoff TA, Bos PK, Moelker A, et al. Genicular artery embolisation versus sham embolisation for symptomatic osteoarthritis of the knee: a randomised controlled trial[J]. BMJ Open, 2024, 14(10): e087047.
[42]
Bagla S, Piechowiak R, Hartman T, et al. Genicular Artery Embolization for the Treatment of Knee pain Secondary to Osteoarthritis[J]. J Vasc Interv Radiol, 2020, 31(7): 1096-1102.
[43]
Poursalehian M, Bhia I, Ayati Firoozabadi M, et al. Genicular Artery Embolization for Knee Osteoarthritis: A Comprehensive Review[J]. JBJS Rev, 2023, 11(9) : e23.
[44]
Hernández-Yumar A, González-Hernández Y, Delpino-Sedeño T, et al. Genicular artery embolization for knee osteoarthritis : a systematic review with meta-analysis and cost-analysis[J]. Gac Sanit, 2025, 39: 102459.
[45]
Lee L, Epelboym Y. Review of genicular artery embolization, radiofrequency ablation, and cryoneurolysis in the management of osteoarthritis-related knee pain[J]. Diagn Interv Radiol, 2023, 29(4): 614-620.
